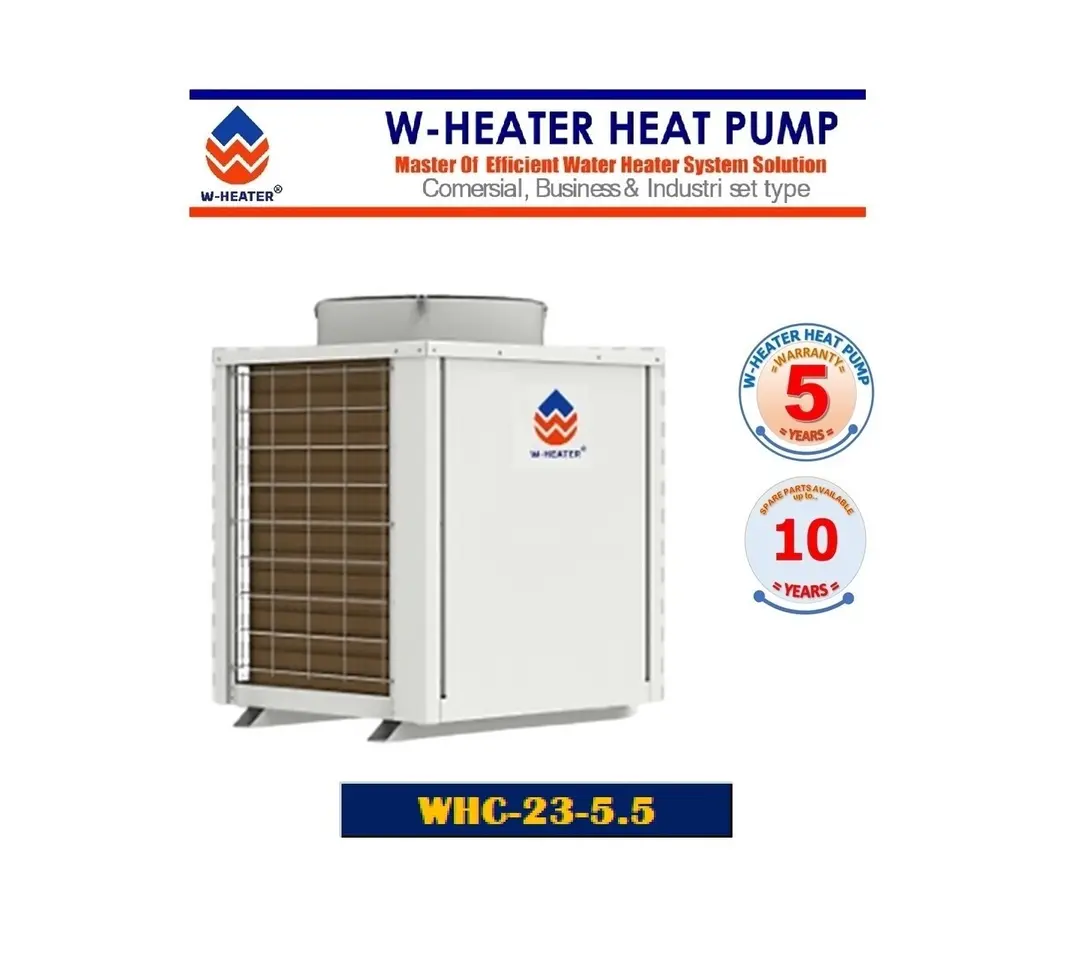

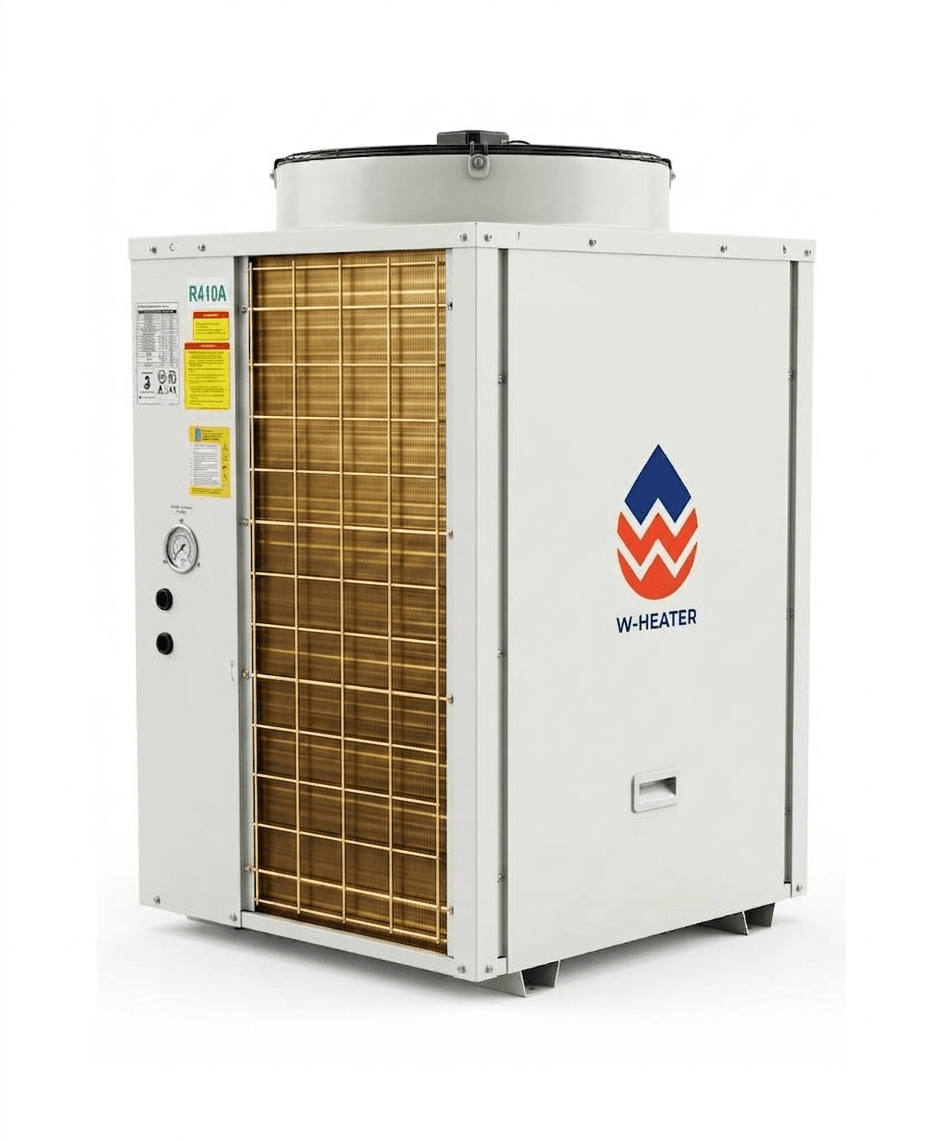

Commercial Hot Water Heater WHC 23-5.5
Spesifikasi
- Model : W-Heater WHC 23-5.5
- Heating Capacity : 23.3 kW
- Input power : 5.5 kW
- COP : 4.24 W/W
- Rated current : 9.8 A
- Max input power : 8.5 kW
- Max current : 15.2 A
- Rated outlet water temperature : 55 ℃
- Highest outlet water temperature: 60 ℃
- Power suppy : 380V 3N～/50Hz
- Anti-electric shock Rate Ⅰ
- IP Grade (Level of protection) : IPX4
- Refrigerant : R410A
- Operation Ambient Temp. : 7～43 ℃
- Production capacity : 501 L/h
- Diameter of pipe : DN25 mm
- Water circulation : 4.0 m3/h
- Water pressure drop: 70 kPa
- Noise : 59 dB(A)
- Net weight : 133 Kg
- Body size mm（W} 750 mm X（D）: 805 mm X（H ): 1165
