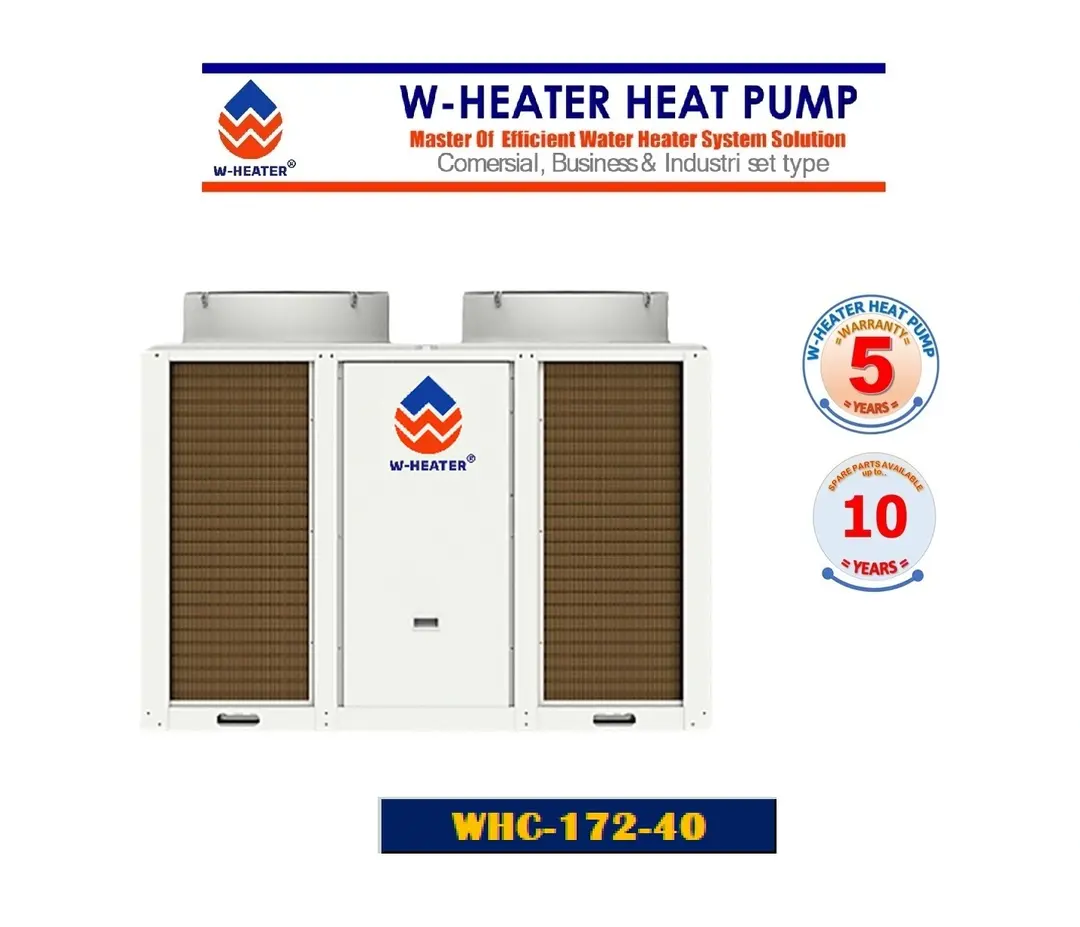

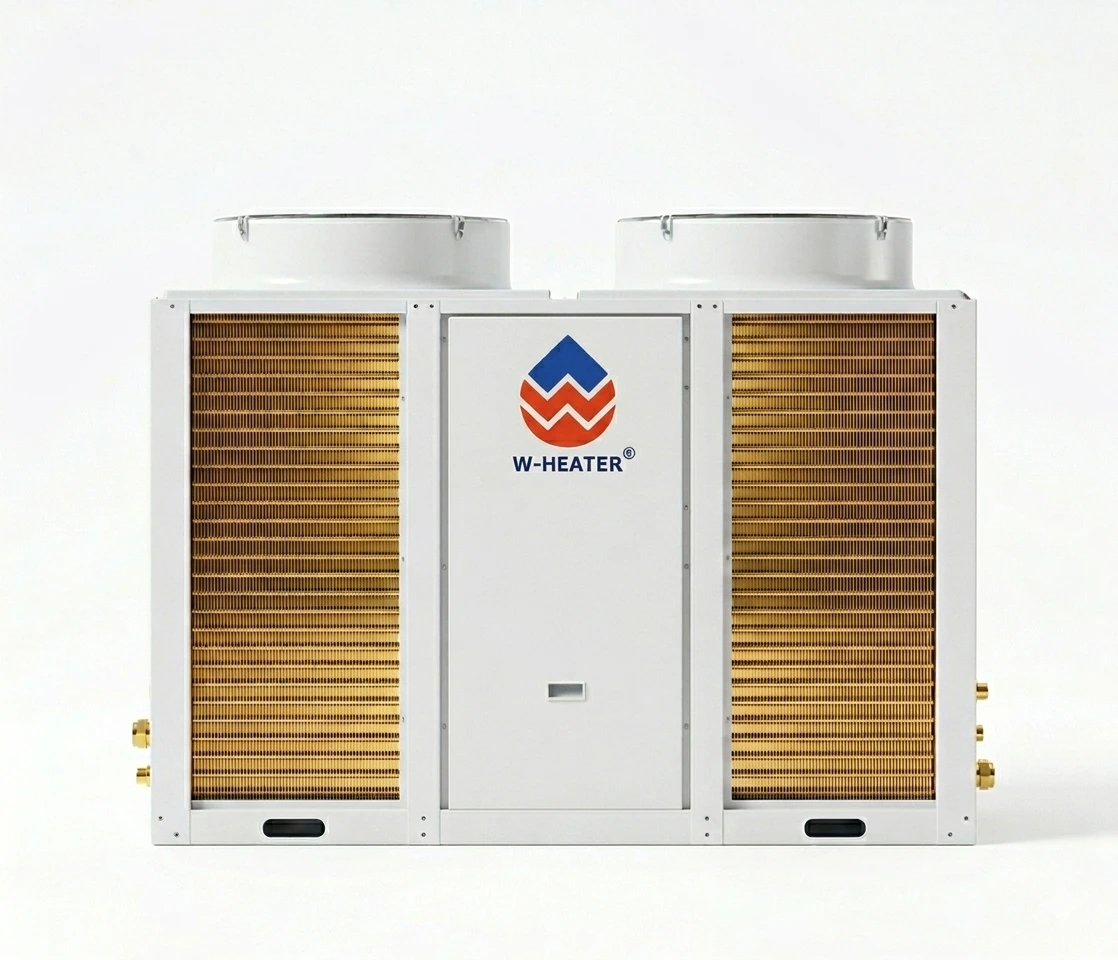

W-Heater WHC 172-40
Spesifikasi
- Model W-Heater WHC 172-40
- Heating Capacity: 172 kW
- Input power : 40.5 kW
- COP : 4.24 W/W
- Rated current : 72.4A
- Max input power : 59 kW
- Max current : 105.5 A
- Rated outlet water temperature : 55℃
- Highest outlet water temperature: 60℃
- Power suppy : 380V 3N～/50Hz
- Anti-electric shock : Rate Ⅰ
- IP Grade (Level of protection) IPX4
- Refrigerant : R410A
- Operation Ambient Temp.: -7℃～43℃
- Production capacity : 3698 L/h
- Diameter of pipe : DN65 mm
- Water circulation : 29.584 m³/h
- Water pressure drop : 70 kPa
- Noise : 78 dB(A)
- Net weight : 1300 kg
- Body size mm:（W) 2400 mm（D)1300 mm（H)2350 mm
